Product Detailed Description
Instructions

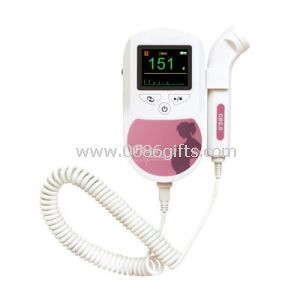

Pocket Fetal Doppler is a hand-held obstetrical unit, which can be used in hospital, clinic and home for daily self-check by pregnant woman. The device uses color LCD of high resolution to display the fetal heartbeat waveform, and figure out the FHR to help the doctor diagnose in time.It contains components of ultrasonic signal transmitter and receiver, analog signals processing unit, FHR calculating unit, LCD display control unit etc. It has 3 work modes: real-time FHR display mode, averaged FHR display mode, and manual mode . It also has audio output, and can be connected with earphone or recorder with audio input.
Main Features
1.Beautiful shape, portable, easy operation
2.The probe has bending structure which is easy to operate and can increase the ease of the pregnant women, embodies the humane care design
3.Fetal heart rate values, bar graph and heartbeat waveform color screen display
4.Alarming in red when the fetal heart rate range is out of the normal range
5.Battery status indicator
6.The probe can be changeable
7.Probe inspection
8.Built-in speaker
9.Output for headphone
10.Auto shut off
11.Two pieces of standard 1.5V alkaline battery available which can work no less than 8 hours
Main performance
1.Anti-electroshock Type: Internally powered equipment
2.Anti-electroshock Degree: Type B applied part
3.Display: 1.77"262K TFT display
4.FHR Measuring Range: 50BPM - 240 BPM (BPM: beat per minute)
Resolution: 1 BPM
Accuracy: ±2 BPM
5.Power Consumption: < 0.8 W
Voltage: DC 3.0 V
Power Supply: TWO 1.5V(AA size)alkaline battery
6.Suitable Using Range: Suitable for use after the 12th week of pregnancy
7.Auto Shut-OFF: After 1 minute no signal, power off automatically
8.Probe:
Nominal Frequency: 2.0 MHz
Working Frequency: 2.0 MHz ± 10%
Ultrasound Output Power: P < 10 mW
Ultrasonic Output Intensity: Isata < 5mW/cm2
Negative Peak Sound Pressure : p_ < 0.5 MPa
9.Working Mode: Continuous wave doppler
10.Effective Radiating Area of Transducer: 157 mm2 ± 15%
Packing List:
Fetal Doppler 1pc
User manual: 1 pc
We have 12 years experience in gifts market.With us, you can easily get New doppler machine personalized with your logo,slogan,Color,telephone number,url,email.We will work closely with you to ensure the perfect gifts production is suited to your needs.
New doppler machine is good for promotional gifts, corporate gifts, executive gifts, giveaway items, business gifts.We help customers create unique and personalized gifts for all of life's occasions — big and small.
0086gifts have a very high customer loyalty rate.Our experienced customer service and corporate sales staff are able to directly interact with our production and shipping departments to ensure accurate order processing, manufacturing, and shipping. We work very closely with our customers to fulfill their needs.
Customer Comments
Question & Answers
IMPRINT COLORS
Standard Silk-Screen ColorsSET UP CHARGE
$40.00(G) per color, per side. $25.00(G) on re-orders.
MULTI-COLOR IMPRINT
Add .20(G) per extra color, per side, per piece. (2 Color Maximum) Second Side Imprint: Add .20(G) per color, per piece.
One year Product Guarantee.
Pre Order Processing: 3 days
Production 20 days (begins after art prep, proof approval)
Shipping by Express 3 to 6 days
by sea 20 to 30 days
