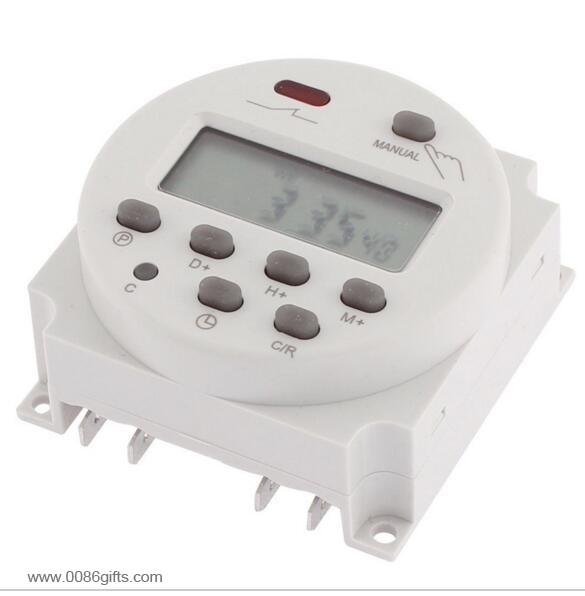

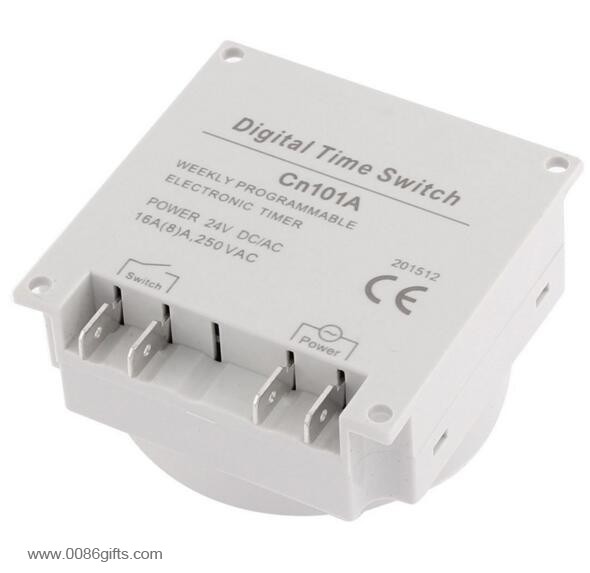

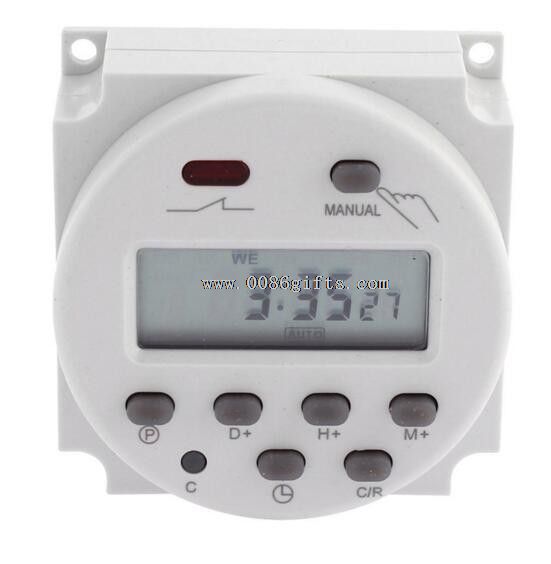

LCD Digital Power Programmable Timer
| Model No. | GF13718 |
|---|---|
| Sample Time | 7 days |
| OEM / ODM | Available |
| Port | Shenzhen or HK,China |
| Views | 1307 views |
US$ 4~13 /Piece | Get Latest Price
Product Detailed Description
Quick Details
Theory:
Digital
Usage:
Timer Switch
Type:
Mini
Full Time Range:
1Min_168Hours
Rated Voltage::
220±10% VAC 50/60HZ
Contact Capacity::
16A 220VAC
Internal battery::
1.2V/40mA(NOT INCLUDED)
Dimensions::
60x60x32mm
Power failure memory ::
60days
Electrical Life::
107 times
Operate Temperature::
-10~+40 Celsius degree
Programmable::
17times/week or day
Minimum interval::
1 minute
Packaging & Delivery
Packaging Details:BE PACKED IN CARTONS
Delivery Detail:7 days
| Rated Control Voltage | AC 110V/220V |
| Contact Capacity | 16A(8)A, 250V AC |
| Hysteresis | <=2 sec/day(25°C) |
| ON/OFF Operation | 17 ON/OFF |
| Power Consumption | 7.5VA(max.) |
| Display | LCD |
| Minimum Interval | 1 minute |
| Switching Contact | 1 changeover switch |
| Ambient Temperature | -10~+40°C |
| Ambient Humidity | 35-85%RH |
| Mounting Hole Diameter | 3mm / 0.12" |

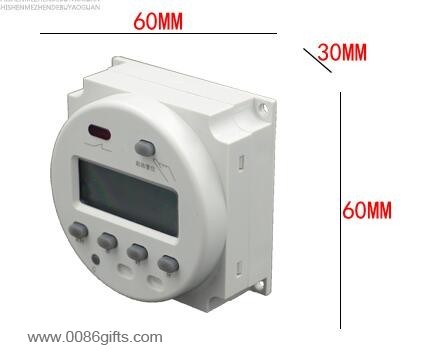

| Overall Size(Approx.) | 60 x 60 x 33mm / 2.4" x 2.4" x 1.3"(L*W*H) |
| Material | Plastic, Electronic Parts |
| Net Weight | 86g |
| Package Content |
1 x Programmable Timer 1 x Manual |
