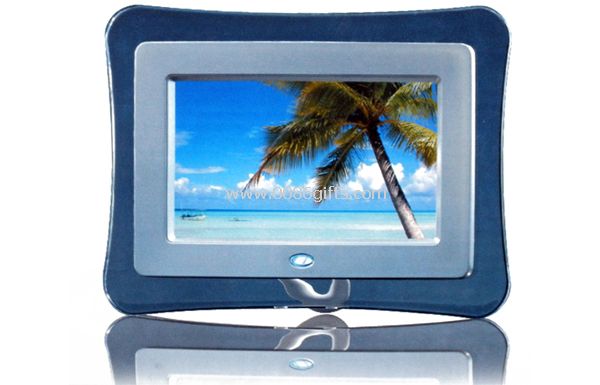

7 inch Digital Photo Frame and Digital TV
| Model No. | GF1005 |
|---|---|
| Sample Time | 7 days |
| OEM / ODM | Available |
| Port | Shenzhen or HK,China |
| Views | 259 views |
US$ 30~50 /Piece | Get Latest Price
Product Detailed Description
1) Integrative design of both Digital Photo Frame and Digital TV
2) DVB-T support QPSK,16QAM,64QAM demodulation, compatible with 6M,7M,8M bandwidth
3) Support MPEG1（VCD *.DAT）,MPEG2( *.MPG),MPEG4(*.AVI *.MP4),MP3,WMA,JPEG Format
4) Four-in-one card reader function (SD/MMC/MS/XD)
5) Built in high capability and large capacity polymer lithium Batteries (Optional,not standard accessory)
6) 7 inch ROHS standard new LED
1) Integrative design of both Digital Photo Frame and Digital TV
2) DVB-T support QPSK,16QAM,64QAM demodulation, compatible with 6M,7M,8M bandwidth
3) Support MPEG1（VCD *.DAT）,MPEG2( *.MPG),MPEG4(*.AVI *.MP4),MP3,WMA,JPEG Format
4) Four-in-one card reader function (SD/MMC/MS/XD)
5) Built in high capability and large capacity polymer lithium Batteries (Optional,not standard accessory)
6) 7 inch ROHS standard new LED
7) Video decoding support: MPEG1（VCD *.DAT）,MPEG2( *.MPG),MPEG4(*.AVI *.MP4)
8) Audio decoding support: MP3, WMA
9) Photo decoding support: JPEG
10) SLIDE SHOW function
11) Collecting function of the favorite photos
12) Calendar and clock function
13) Earphone output
14) USB can to Compatible DVD,VCD,MP4,SVCD,MP3,JPEG etc
Other:
Switching Power Adapter AC100-240V, input 12V, 1.5A output
Accepted working temperature 0-40 ℃
Power consumption < 15W
Size 232X165X32（mm）
DVB-T Specifications:
Tuner : 1)Receiving Frequency: VHF-L, VHF-H, UHF
2)6MHz, 7MHz & 8MHz
3)Input Level: -78 ~ -20 dBm
4)Input Impedance: 75 Ohm
Demodulation: 1)Demodulation: QPSK, QAM16, QAM64
2)Wave Type: COFDM(Coded Orthogonal Frequency Division Multiplexing)[Page]
3)Mode: 2K, 4K, 8K
4)Guard Interval: 1/4, 1/8, 1/16, 1/32
5)FEC: 1/2, 2/3, 3/4, 5/6, 7/8
